Rear Engine Dragster Chassis Jig
I-Beam Legs
Leg in welding jig.

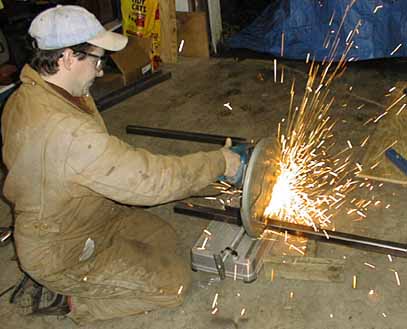

Cutting 1 1/2" square tubing.
Filing the burrs off.

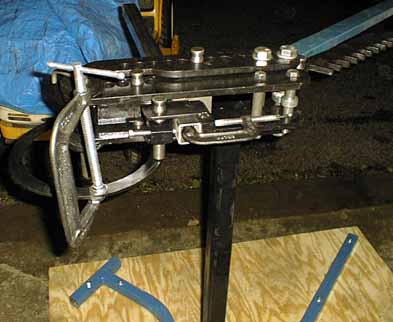

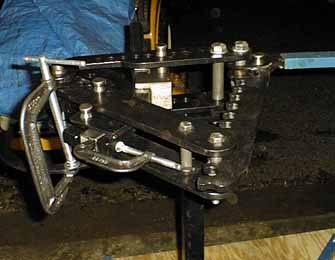

Set up for first bend.
First bend complete.
Bent Leg.

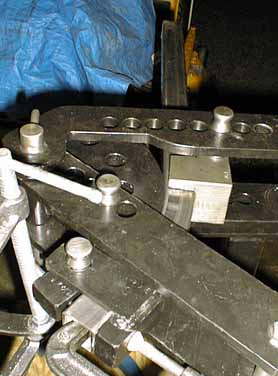

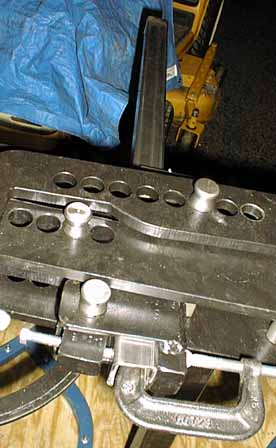

Close up of 28" straight in bender.
Close up of first bend completed.

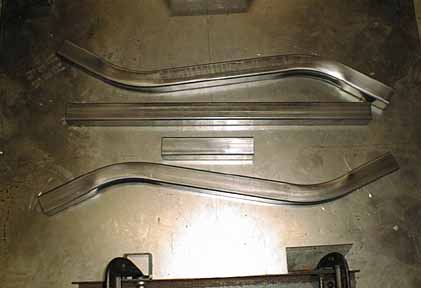

Two 28" bent legs, 24" lower piece, 7" top piece - cleaned, burnished
- ready to fit in welding jig.

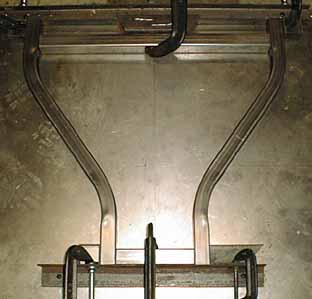

In welding jig, ready to tack.

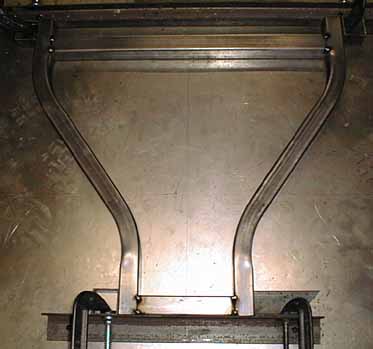

Tacked.
Out of welding jig, completing the welds.

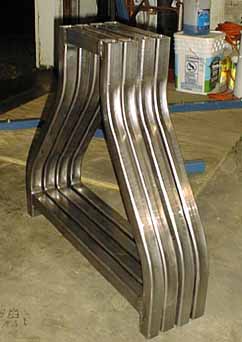

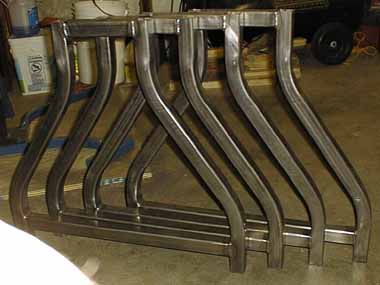

Four legs welded - top support and bottom adjusters to go.
Yes, that is my finger....
And now on to Leg Levelers...
