Build a Chassis Jig
Leg Brace
I-Beam support drilled and welded to top of leg.

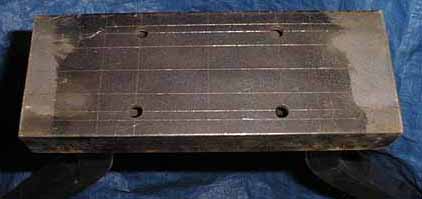

Hole layout for I-Beam bolts.

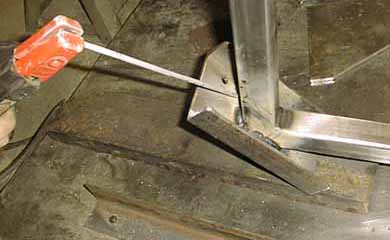

DC+ Stick welding I-Beam support to top of V-Brace.

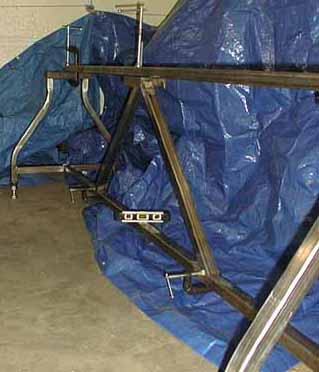

V-Brace cut and positioned for welding.

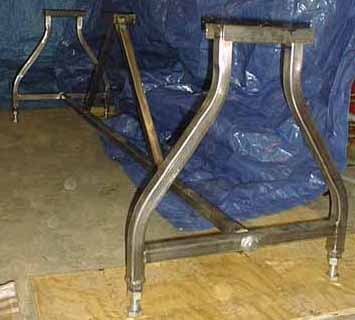

Welding complete - overall view.

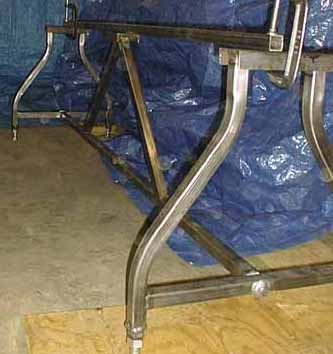

Tempory top bar removed - 2 of 2 I-Beam support leg structures completed.

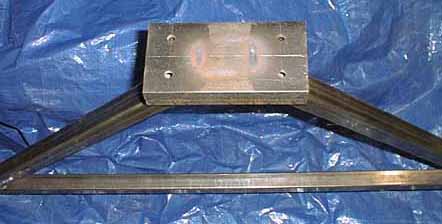

Top view of V-Brace.
And now on to Legs Painted...
