Build a Chassis Jig
Legs Connected

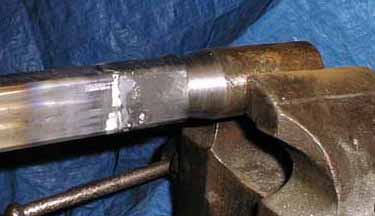

Expand the end of the horizontal member to accept the welded nut/washer.
Sleeve to prevent crushing tubing when bolt tightened.
Nut/washer welded into expanded end of horizonal member.

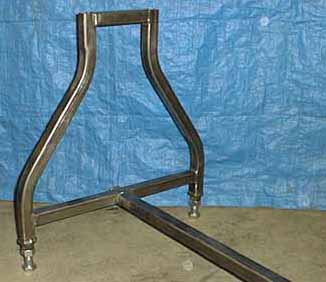

Leg bolted to horizontal member, interior view.

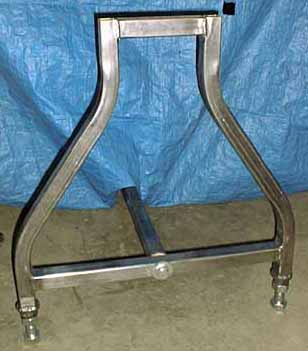

Leg bolted to horizontal member, exterior view.
And now on to Leg Brace...
